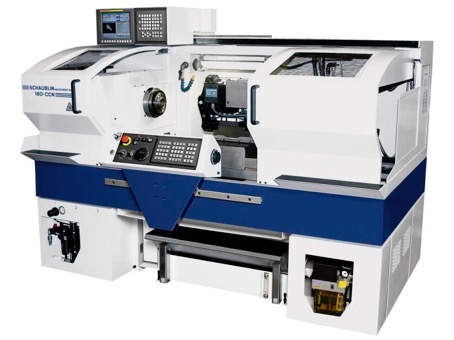

Schaublin 180 CCN RT-M

• max swing over bed : 430 [mm]
• maxi swing over cross slide : 160 [mm]
• distance between centers : 650 [mm]
• spindle nose : A2-5
• max bar diameter : 42 [mm]
• spindle power : 18.5 [kW]
• spindle speeds : 0 to 5000 [rpm]
• strokes X x Z : 230 x 720 [mm]
• feed speeds : 0 to 5000 [mm/min]
• rapid speeds (X/Z) : 8 / 10 [m/min]

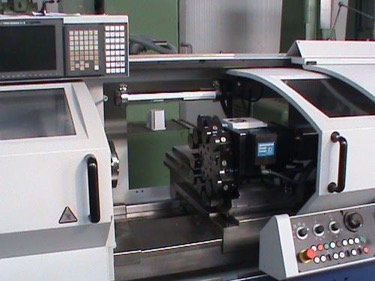

• gun-type turret : 12 positions
• tool-holders : VDI 30
• live tools max. speed : 5000 [rpm]
• live tools max. power : 3.7 [kW]
• tailstock quill travel : 80 [mm]
